Functions of geolink pulse generator during oil drilling process

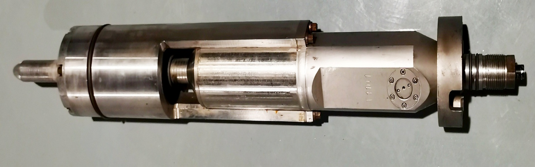

The Geolink Pulse Generator is a crucial component in Measurement While Drilling (MWD) systems used during the oil drilling process. Its primary function is to generate pressure pulses in the drilling fluid (mud) to transmit real-time data from the bottom of the wellbore to the surface. Here are the key functions of the Geolink Pulse Generator:

 1. Data Transmission

   - The pulse generator encodes data (e.g., downhole conditions, tool orientation, formation properties) into pressure pulses in the drilling mud.

   - These pulses travel up the mud column to the surface, where they are decoded by surface equipment.

 2. Real-Time Monitoring

   - Enables real-time monitoring of downhole parameters such as:

     - Wellbore trajectory (azimuth and inclination).

     - Formation evaluation data (e.g., gamma ray, resistivity).

     - Drilling dynamics (e.g., vibration, temperature, pressure).

   - This information helps drillers make immediate decisions to optimize drilling efficiency and safety.

 3. Directional Drilling Guidance

   - Provides critical data for steering the drill bit in directional drilling operations.

   - Ensures the wellbore follows the planned trajectory to reach the target reservoir.

 4. Pressure Pulse Generation

   - Creates controlled pressure fluctuations in the drilling mud using a valve mechanism.

   - The pulses are modulated to represent binary data (e.g., 0s and 1s) for transmission.

 5. Reliability in Harsh Conditions

   - Designed to operate reliably in high-pressure, high-temperature (HPHT) environments.

   - Resists wear and tear from abrasive drilling fluids and harsh downhole conditions.

 6. Compatibility with MWD Systems

   - Integrates seamlessly with other MWD tools and sensors to provide a comprehensive downhole data stream.

   - Works with various telemetry systems (e.g., mud pulse, electromagnetic).

 7. Enhanced Drilling Efficiency

   - By providing real-time data, the pulse generator helps reduce non-productive time (NPT) and improve drilling accuracy.

   - Enables early detection of potential issues, such as wellbore instability or equipment malfunctions.

 8. Safety Improvements

   - Facilitates early warning of hazardous conditions, such as kicks or stuck pipe, allowing for timely corrective actions.

In summary, the Geolink Pulse Generator plays a vital role in ensuring efficient, accurate, and safe drilling operations by enabling real-time communication between downhole tools and surface systems.
