The top drive rotary plug valve plays several key roles in drilling operations:
1. **Providing Rotary Drive Force**:
The top drive rotary plug valve uses an electric motor to drive a gearbox that rotates, generating torque. This torque is then transmitted through a hydraulic system to the drill pipe and bit. In this way, the drill bit receives the rotational drive force needed to break rock formations and complete the drilling operation.
2. **Supporting the Drill String**:
During drilling, the drill string tends to sag and bend due to its own weight. The top drive rotary plug valve applies upward pressure to effectively support the drill string, preventing it from sagging and bending, and maintaining the straightness of the drill string to ensure normal drilling operations.
3. **Reducing Frictional Resistance**:
By applying upward pressure, the top drive rotary plug valve reduces the contact force between the drill string and the wellbore wall, thereby reducing frictional resistance. This helps to minimize rotation difficulties, energy loss, and hanging risks, and improves drilling efficiency.
4. **Converting Rotary Power**:
The top drive rotary plug valve is capable of converting hydraulic power provided by the hydraulic unit into rotational power for the drill string, driving the drill bit to perform drilling operations.
5. **Controlling Wellhead Pressure and Fluid Flow**:
The top drive rotary plug valve helps prevent wellhead blowouts, protecting the safety of drilling personnel. It controls wellhead pressure and fluid flow, which is crucial for the safety and efficiency of oil well drilling operations.
6. **Structural Composition**:

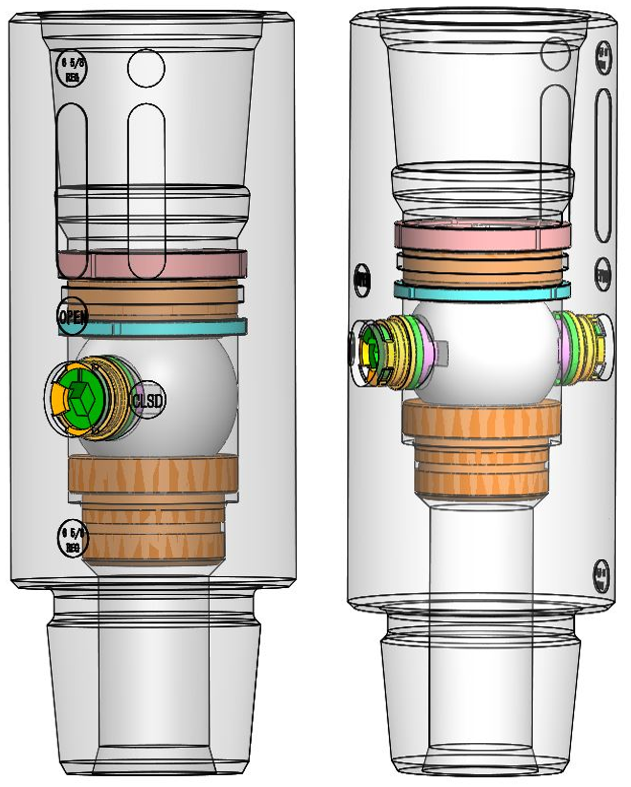

The structure of the top drive rotary plug valve mainly includes a driver, transmission device, piston-type top pusher, plug body, and annular sealing device. These components work together to enable the plug valve to perform its functions while ensuring the safety and reliability of operations.
7. **Adapting to Different Well Diameters**:
The top drive rotary plug valve can flexibly adapt to different well diameters, improving drilling efficiency and safety, especially under special conditions such as deepwater wells.
In summary, the top drive rotary plug valve plays a vital role in drilling engineering. It not only provides rotational drive force, supports the drill string, reduces frictional resistance, but also controls wellhead pressure and fluid flow, ensuring the smooth progress of drilling operations.
