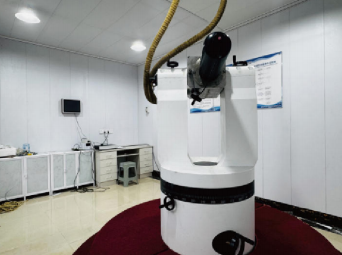

The function of High-precision MWD calibration test benches in oil drilling

High-precision MWD (Measurement While Drilling) calibration test benches are specialized equipment used for calibrating and testing MWD instruments. MWD instruments are key tools for measuring downhole parameters in real-time during the drilling process, such as inclination, azimuth, temperature, and pressure. Here are the main functions of high-precision MWD calibration test benches:

1. **Ensure Measurement Accuracy**:

   - The calibration test bench ensures that the measurement data from MWD instruments are accurate and reliable, which is crucial for the success of drilling operations.

2. **Calibrate Sensors**:

   - The test bench is used to calibrate sensors in the MWD instruments, including temperature, pressure, accelerometers, and gyroscopes, ensuring that their readings match the actual values.

3. **Performance Verification**:

   - Before the MWD instruments are put into use, the test bench is used to verify their performance, including measurement range, accuracy, and stability.

4. **Fault Diagnosis**:

   - If MWD instruments encounter problems during drilling, the test bench can be used to diagnose faults and determine which components need to be replaced or repaired.

5. **Quality Control**:

   - The test bench is part of the quality control process, ensuring that all MWD instruments undergo strict testing and calibration before leaving the factory.

6. **Simulate Drilling Conditions**:

   - High-precision MWD calibration test benches can simulate various drilling conditions to test the performance of MWD instruments under high temperature, high pressure, and other extreme conditions.

7. **Extend Instrument Life**:

   - Regular calibration and maintenance using the test bench help extend the service life of MWD instruments.

8. **Improve Operational Efficiency**:

   - Accurate MWD data can reduce non-productive time in the drilling process and improve operational efficiency.

9. **Reduce Risks**:

   - By ensuring the reliability of MWD instruments, the test bench helps reduce risks during drilling, including blowouts and equipment damage.

10. **Data Comparison and Analysis**:

    - The test bench can be used to compare data from different MWD instruments to assess their performance and consistency.

High-precision MWD calibration test benches are indispensable tools for the maintenance and calibration of drilling equipment, and they are crucial for ensuring the safety, accuracy, and efficiency of drilling operations.
