The working principle of a mud splash prevention valve mainly involves the following aspects:

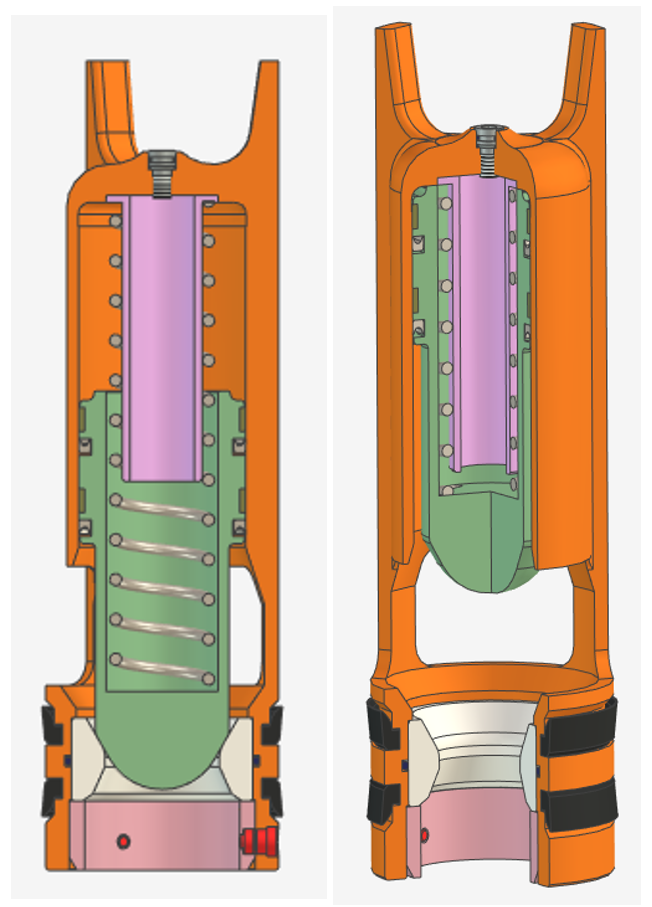

1. **Structural Composition**:
- The mud splash prevention valve typically includes components such as the housing, valve body parts, and sealing rings. The valve body parts are divided into the first and second valve body sections, which are installed in the housing with positional restrictions and sliding capabilities. The first valve body section is located above the second valve body section, and they are in close contact to seal the flow of mud.
2. **Pressure Transmission and Control**:
- The pressure of the mud is transmitted to the first valve body section through pressure membranes and pressure elastic membranes, preventing the mud from affecting the internal structure of the valve. The control of mud is achieved by limiting the cooperation between the piston and the throttle ring.
3. **Flow Path Design**:
- A cylindrical mud channel is formed between the housing and the first valve body section. This channel does not affect the flow state of the mud within the housing and reduces the occurrence of mud splashing.
4. **Automatic Adjustment Mechanism**:
- When the mud pressure increases, the opening between the throttle ring and the lower valve body becomes larger, accelerating the mud flow rate and increasing the flow. Conversely, when the mud pressure decreases, the opening becomes smaller, reducing the flow.
5. **Sealing Performance**:
- The mud splash prevention valve uses mechanical sealing or packing sealing to ensure effective prevention of mud leakage when closed.
Through these mechanisms, the mud splash prevention valve can effectively control the flow of mud, prevent mud splashing, and ensure the smooth progress of drilling operations.
