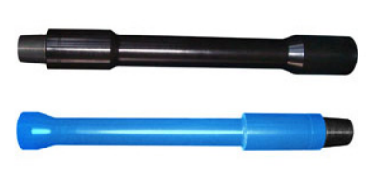

Integral Spiral Stabilizer: Precision Wellbore Control with Advanced Hardfacing Technology
The Deviation Control Challenge
Unstable BHAs cause:
-Excessive doglegs (>8°/100ft) leading to stuck pipe
-Accelerated drill string wear costing $500K/well in replacements
-Poor hole cleaning increasing equivalent circulating density (ECD) risks
Our spiral stabilizers deliver:
✅ 65% lower vibration than straight-blade designs
✅ 3x service life with advanced hardfacing options
✅ ±0.15° inclination control in directional wells
Engineered for Performance
Spiral vs. Straight Blade Design
Feature | Spiral Stabilizer | Straight-Blade Stabilizer |
Rotation | Smooth torque transmission | High rotational vibration |
Hole Cleaning | Aggressive cuttings transport | Poor fluid mobilization |
Stick-Slip | 40-50% reduction | Minimal reduction |
Applications | Directional, horizontal, curved sections | Vertical wells only |
HF Hardfacing Technology Matrix
Grade | Hardness (HRC) | Application | Life Extension |
HF1000 | 58-62 | Soft formations (shale, clay) | 2x conventional |
HF2000 | 62-65 | Medium abrasive (sandstone) | 2.5x conventional |
HF3000 | 65-68 | Hard formations (dolomite, limestone) | 3x conventional |
HF4000 | 68-72 | Extremely abrasive (chert, quartzite) | 3.5x conventional |
→ Tungsten carbide particles in nickel-chrome matrix
→ Computerized deposition for uniform thickness
Technical Specifications
Parameter | Specification |
Size Range | 6-1/4" to 26" OD (standard & custom) |
Blade Configuration | 3-start or 4-start spiral |
Blade Height | Full-gauge, under-gauge, or custom |
Connections | API REG, IF, FH (all standards) |
Materials | 4140H/4145H steel, AISI 4130 |
Compliance | API Spec 7-1, API RP 7G-2 |
Operational Benefits
✅ Superior Deviation Control
Maintains <1°/100ft build rates in curve sections
Eliminates spiraled wellbores in horizontals
✅ Extended BHA Life
Reduces drill collar wear by 60%
Protects MWD/LWD tools from vibration damage
✅ Drilling Efficiency
Improves ROP 15-25% through vibration damping
Enables higher RPM in abrasive formations
Field Applications
Directional Wells: Precise tangent section control
Horizontal Laterals: Full-gauge stabilization in production zones
Geothermal Drilling: HF4000 grade for volcanic formations
Slimhole Operations: 6-1/4" to 8-3/4" sizes for deep exploration
