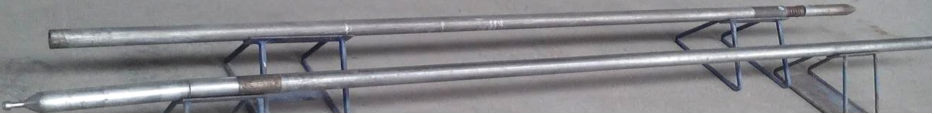

The electronic multi-shot inclinometer probe consists of four main components: sensors, signal processing circuitry, a microcontroller board, and a power supply.
1. Sensors: These provide the fundamental measurements:
Triaxial Gravitational Accelerometers: Measure the components of the gravitational acceleration vector along three mutually perpendicular axes (X, Y, Z). This is crucial for determining inclination and toolface angle.
Triaxial Fluxgate Magnetometers: Measure the components of the Earth's magnetic field vector along three mutually perpendicular axes (X, Y, Z). This is essential for determining azimuth (relative to magnetic north).
Temperature Sensor: Measures the internal temperature of the probe. This data is critical for temperature compensation calculations to correct for the thermal drift of the accelerometers and magnetometers, thereby enhancing measurement accuracy.
2. Signal Processing Circuitry: This performs initial conditioning of the raw sensor signals:
Receives weak analog electrical signals from the sensors (accelerometers, magnetometers, temperature sensor).
Performs signal conditioning: Amplification (boosting signal strength), Filtering (removing noise interference), Isolation (preventing signal crosstalk).
3. High-Precision Analog-to-Digital Converter (ADC): This bridges the analog and digital domains:
Digitizes the conditioned analog signals (gravity, magnetic field, temperature) into digital signals processable by the microcontroller.
High precision (e.g., 16-bit, 24-bit) is vital for ensuring measurement accuracy.
4. Microcontroller Board: This acts as the "brain" and computational center:
Controls the entire measurement sequence (e.g., sampling frequency, sensor wake/sleep cycles).
Receives digital signals from the ADC (gravity components Gx, Gy, Gz; magnetic field components Bx, By, Bz; temperature T).
Performs Core Calculations:
Inclination (Inc): Calculates the angle between the probe axis and the gravity vector (vertical). Formula: `Inc = arccos(Gz / sqrt(Gx² + Gy² + Gz²))`.
Azimuth (Az): Calculates the horizontal direction of the probe relative to magnetic north, using both gravity and magnetic field vectors. Involves coordinate transformations and calculation of the arctangent of horizontal magnetic components. Formula (simplified): `Az = arctan2((ByGx - BxGy), (BxGx + ByGy + BzGzK))` (where K is a correction factor).
Toolface Angle (TF): For directional drilling tools (e.g., bent subs, mud motors), calculates the orientation of the tool bend relative to the high side (gravity reference) or magnetic north within the plane perpendicular to the wellbore axis. Formulas: `TF_Gravity = arctan2(Gy, Gx)` (Gravity Toolface) or similar using magnetic components for Magnetic Toolface.
Magnetic Field Strength (B): Calculates total field strength `B = sqrt(Bx² + By² + Bz²)` for quality control and magnetic interference detection.
Temperature Compensation: Uses temperature data (T) and pre-calibrated temperature drift models to correct the raw gravity and magnetic field data, significantly improving accuracy, especially in harsh downhole temperature environments.
Data Storage: Writes the calculated parameters (inclination, azimuth, toolface, temperature, magnetic field strength), along with a timestamp (if available) and potentially raw data or status information, to non-volatile memory chips (e.g., Flash, EEPROM).
5. Power Supply: Provides stable power to the entire probe system (sensors, signal processing, ADC, microcontroller, memory). Typically uses high-performance batteries with sophisticated power management circuitry to optimize consumption and extend downhole operating time.
Through a combination of precision sensors, high-speed digital signal processing, powerful embedded computation, and reliable storage technology, the electronic multi-shot inclinometer achieves high-precision, multi-point measurement of critical wellbore attitude parameters in harsh downhole environments.
