Product Overview

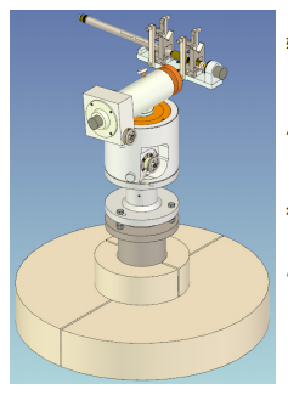

The MWD Intelligent Calibration Bench is a high-precision automated calibration system designed for measurement and calibration of various probes (MWD, wired probes, electronic multi-shot/single-shot inclinometers). Utilizing three 18-bit high-accuracy sensors, it transmits data via RS-232 to a computer for real-time display, enabling rapid and precise probe parameter calibration.
Core Advantages (vs. Traditional Mechanical Calibration Benches)
1.Ultra-High Accuracy
Calibration accuracy of ±0.0013° for azimuth, inclination, and toolface angles.
2.Enhanced Functionality
Added toolface angle measurement for comprehensive calibration.
3.Intelligent Operation
PC-controlled interface with intuitive parameter visualization.
4.Reliable Construction
Full non-magnetic material build, compact structure (260kg total weight).
5.Universal Compatibility
Adapts to inclinometers of varying diameters and specifications.
Technical Specifications
1.Dimensions (L×W×H):1000 × 1000 × 1530 mm
2.Weight:260 kg
3.Calibration Accuracy;Azimuth/Inclination/Toolface: ±0.0013°
4.Computer Interface:USB
5.Input Voltage:AC 220V
6.Data Output:RS-232 Serial Port
Applications
1.Oilfield Drilling: MWD probe calibration, measurement-while-drilling system verification
2.Geological Exploration: Electronic multi-shot/single-shot inclinometer validation
3.Manufacturing: Probe factory acceptance testing (FAT) and quality control
